Anodizing

What is Anodizing?

One of the most common techniques for protecting the surface of metals, anodizing is an electrolytic process in which an oxide (anodic) layer is chemically built on the surface of the metal.

This oxide layer acts as an insulator and provides surface corrosion protection and serves as an excellent substrate for decorative finishes. In the case of anodizing aluminum the anodic oxide structure originates from the aluminum substrate itself and is composed entirely of aluminum oxide. It has a highly ordered, porous structure that allows for secondary processes such as coloring and sealing.

  • Anodizing is a “conversion coating” and is very different from paint, electroplating or other metal coatings. Anodize coatings are measured by thickness – the term thickness includes both penetration & build-up. While paints and plating sit on top of the surface of the aluminum, anodizing converts the outer layer of aluminum to aluminum oxide, so the coating is fully integrated with the aluminum substrate. This is the primary reason why anodize thickness is defined by the combination of the penetration into the substrate & the buildup of the oxide layer from the original dimension.

Types of Anodize Provided by AOTCO

Type I – Chromic Acid Anodizing
  • Provides an oxide layer on aluminum for corrosion protection, electrical insulation, and improved dielectric strength
Type II – Sulfuric Acid Anodizing
  • Improves surface corrosion protection under severe service conditions or as a base for paint systems
Type IIB – Thin Sulfuric Acid Anodizing
  • Serves as a non-chromate alternative to Type I and IB coatings, where corrosion resistance, paint adhesion, and fatigue resistance are all required
Type III – Hardcoat Anodizing (Hard Anodic Coatings)
  • Provides wear and abrasion resistant surfaces with improved corrosion protection due to greater thickness and weight than the conventional anodic coatings
Titanium Anodize - Type II
  • Type II Titanium Anodizing is used as an anti-galling coating without additional lubrication or as a pretreatment for improving adherence of film lubricants and in application where increased resistance to galvanic corrosion is required

Benefits of Anodizing

  • Very price competitive with painting and powder coating
  • Durable, hard, abrasion resistant, and long lasting; coating does not peel or chip
  • Excellent corrosion protection; withstands salt-spray and other tests extremely well
  • Good electrical insulator; combined with other coatings can be used for selective masking of low-voltage cu.
  • Environmentally-friendly; can be readily recycled. Inorganic chemicals used have minimal environmental impact.
For further information about each type of Anodizing we offer, please visit the dedicated pages for each process.
Not sure which process will best match your specific needs? We're happy to help. Simply contact us to get things started.
NQA_ISO13485 NQA_AS9100_CMYK_UK NQA_ISO9001_CMYK ANAB Itar Compliant Logo (blue, circular) Cybersecurity Nadcap

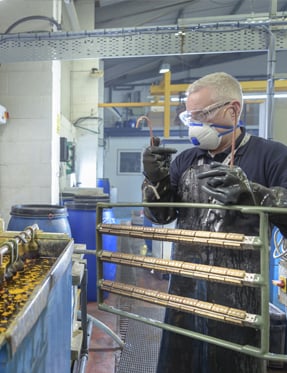

Electroplating

Electroplating

Electroplating

Tin is a non-toxic and corrosion resistant whitish gray deposit used in a wide variety of industries.
electroplating-img

Electroless plating

Electroless plating

Electroless Nickel deposition does not require an electrical current and provides uniform buildup on materials with complex shapes/geometry and across all external and internal surfaces.
passivation

PASSIVATION

PASSIVATION

Passivation is a term for a variety of processes that make a metal or other substance unreactive, or passive.
electropolish

Electropolish

Electropolish

Electropolishing removes a thin microscopic layer and cleans the metal’s surface of any minerals or other impurities.
chem-films

chem films

chem films

Chem Film - often referred to as Conversion Coating or Chromate - is a category of surface treatments that can bring a variety of benefits, including resistance against corrosion.

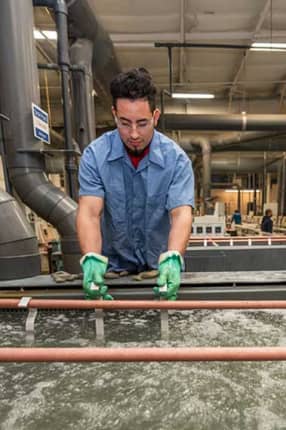

chem-anodizing
